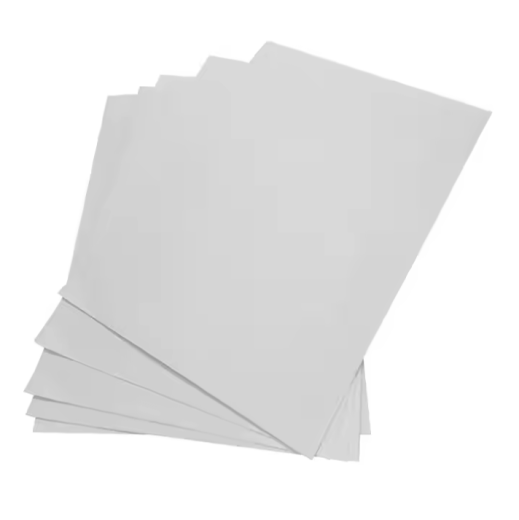

Absorbent liners for instrument trays
Tray liners are placed under instruments to absorb moisture. The listed range includes cellulose and poly/cellulose options, with material, grammage and dimensions specified by reference.
- Purpose
- Moisture absorption
- Materials
- Cellulose or poly/cellulose
- Grammage
- 45 or 80 g/m² by reference
- Listed range
- Twelve references
For instrument trays
The liner is an absorbent accessory for an instrument tray or basket. The product catalogue shows placement directly under the instruments inside the tray.
A liner does not itself establish sterility or replace a sterile-barrier system. Suitability for a particular process depends on the selected product, packaging system and equipment instructions.
References, materials and sizes
The table lists cellulose liners at 80 g/m² and poly/cellulose liners at 45 g/m². Grammage is mass per unit area, not an absorption-rate measurement.
| # | Description | Dimensions | Quantity |
|---|---|---|---|
| MZS004A | Tray Liner, cellulose, 80gsm | 200mm x 305mm (7.87” x 12”) | 3000 |
| MZS005A | Tray Liner, cellulose, 80gsm | 250mm x 250mm (9.84” x 9.84”) | 2000 |
| MZS006A | Tray Liner, cellulose, 80gsm | 250mm x 500mm (9.84” x 19.70”) | 1000 |
| MZS007A | Tray Liner, cellulose, 80gsm | 305mm x 410mm (12” x 16.14”) | 1000 |
| MZS008A | Tray Liner, cellulose, 80gsm | 457mm x 550mm (18” x 21.65”) | 500 |
| MZS009A | Tray Liner, cellulose, 80gsm | 305mm x 305mm (12” x 12”) | 2000 |
| MZS010A | Tray Liner, cellulose, 80gsm | 305mm x 457mm (12” x 18”) | 1000 |
| MZS011A | Tray Liner, cellulose, 80gsm | 305mm x 610mm (12” x 24”) | 1000 |
| MZS012A | Tray Liner, cellulose, 80gsm | 457mm x 457mm (18” x 18”) | 500 |
| MZS013A | Tray Liner, cellulose, 80gsm | 457mm x 610mm (18” x 24”) | 500 |
| MZSP012018 | Tray Liner, poly/cellulose, 45gsm | 305mm x 457mm (12” x 18”) | 600 |
| MZSP020025 | Tray Liner, poly/cellulose, 45gsm | 508mm x 635mm (20” x 25”) | 400 |
Quantities are catalogue figures by reference. Pack configuration forms part of the selected supply specification; the table does not assign these figures to a consumer box or transport carton.
Selection and placement
Select the reference by tray dimensions and material. Keep the cellulose and poly/cellulose versions distinct when comparing the listed sizes.
The catalogue also shows an additional liner underneath the tray as an optional arrangement. Use the placement permitted by the selected packaging system and equipment instructions.
Product resources
Product catalogue and background resources:
Best Practices for Sterilization and Moisture Control
The catalogue describes the product range; it is not a test report or an item-specific instruction for every sterilization cycle.
