MEDIWISH · Cleaning verification
A defined holder configuration for Load Check

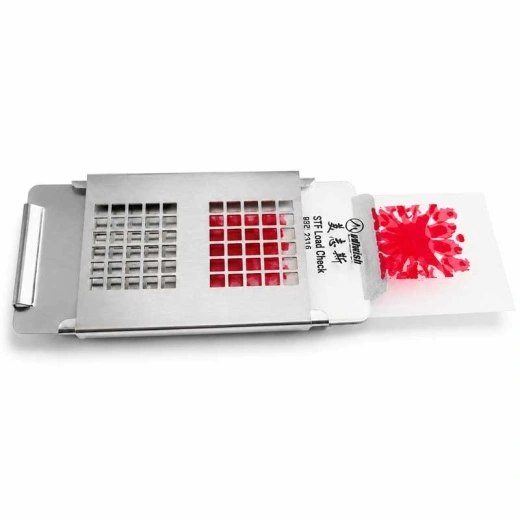

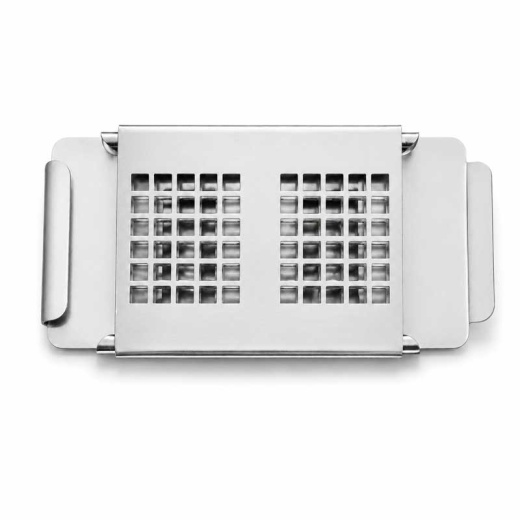

The MEDIWISH 12-5815 reusable rectangular holder retains a complete Load Check card, REF 2345678. Its SS304 frame and grid windows support the defined test configuration, with rear clips for attachment to a suitable basket rim.
- REF
- 12-5815Load Check holder
- Material
- SS304Stainless steel
- Pack
- 1 holderPer box
- Compatible REF
- 2345678Load Check
Installation and water access

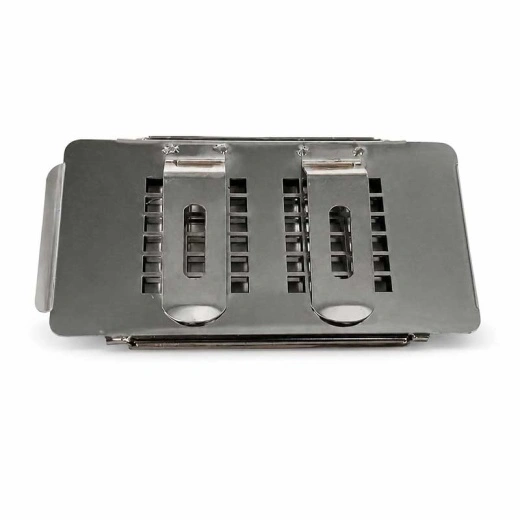

The holder IFU describes four windows: two front and two aligned rear windows, corresponding to the four test areas on the complete card. Seat the card fully and check alignment on both sides. Keep windows clear of instruments and packaging, secure the rear clips and check clearance from spray arms, loading rails and the door. Select the position and orientation under the facility’s established procedure.
The separate holder 12-5800 has a different rear construction. Its solid rear wall is not interchangeable with the window arrangement of 12-5815 without reviewing the test configuration.
Care and condition-based replacement
After removing the used card, rinse loose soil from the holder. The 12-5815 IFU specifies a low-foaming instrument-cleaning detergent compatible with stainless steel, at the detergent manufacturer’s stated concentration, temperature and contact time. Use a soft, non-abrasive brush where needed, rinse thoroughly and dry completely before fitting a fresh card.
Reuse is condition-based, with no fixed maximum cycle count. Replace the holder if corrosion, cracks, burrs, distortion, persistent deposits or unreliable clips or retention are found. Apply the facility’s decontamination procedure following exposure to a contaminated load. Store clean and dry.
Product specifications
| Characteristic | Specification |
|---|---|
| REF | 12-5815 |
| Material | SS304 stainless steel |
| Compatibility | MEDIWISH Load Check 2345678 |
| Pack | 1 holder per retail box |
| Base dimensions | 108.4 × 50 mm |
| Cover dimensions | 90 × 50 mm |
| Sheet thickness | 0.90 mm |
| Net mass | 63.45 g |
| Use | Reusable; condition-based replacement |
| Window arrangement | Two front and two aligned rear grid windows, per holder IFU Rev.02 |
Product · Samples · OEM enquiries
Ordering
Specify holder REF 12-5815 and quantity when requesting a quotation or samples. Each retail box contains one holder. Identify the compatible indicator and process in the same request so the correct configuration and documents can be supplied.
