MEDIWISH · Cleaning verification
Retain the compatible strip in its specified position

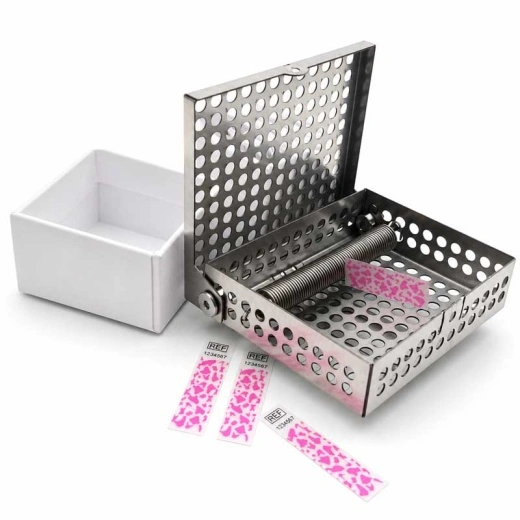

MEDIWISH 12-5814 is a reusable SS304 box holder for CEI CVC-50 and Universal Cleaning Indicator Strips 647913. A transverse spring retains the compatible strip between its coils in the designated test position.
- REF
- 12-5814Reusable box holder
- Material
- SS304Stainless steel
- Pack
- 1 holderPer box
- Compatible REF
- 647913 · CVC-50Specified indicator configurations
Use the correct strip and configuration

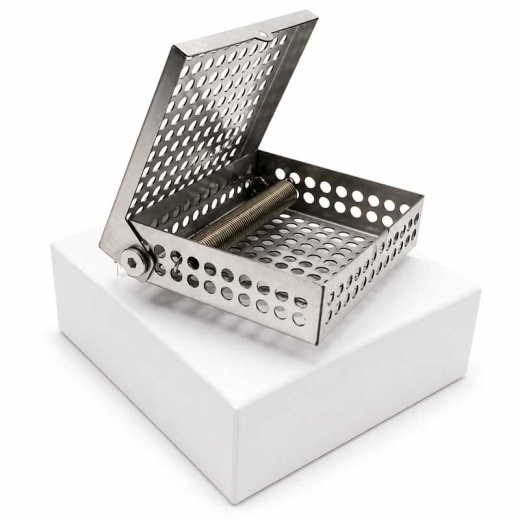

The holder has a perforated body, lid and rear mounting tongue. Maintain the specified strip position and protect the test-soil area during insertion. Select the process, orientation and mounting arrangement from the instructions for the actual indicator. Compatibility with 647913 and CVC-50 does not make their applications or reading criteria interchangeable.
For 647913, the applicable instructions distinguish washer-disinfector and ultrasonic cleaning configurations. Identify the intended process when requesting the holder and indicator set. Holder 12-5814 is not specified for Load Check 2345678, X-Soil 647914 or CVC-10/CVC-10R.
Care and inspection
Clean, dry and inspect the holder between uses. Remove a holder from use if edges are damaged, corrosion is present, perforations are obstructed, the lid is faulty or retention is unreliable. Store the holder clean and dry and protect it from deformation. Follow applicable product instructions and the facility’s decontamination procedure. No fixed maximum cycle count is assigned on this page.
Product specifications
| Characteristic | Specification |
|---|---|
| REF | 12-5814 |
| Material | SS304 stainless steel |
| Compatibility | CVC-50 / CEI and 647913 / Essential Wash Clean 12345678 |
| Pack | 1 holder per retail box |
| Overall dimensions including mounting tongue | 82 × 72 × 28 mm |
| Body dimensions excluding mounting tongue | 82 × 72 × 22 mm |
| Net mass | 108.00 g |
| Construction | Perforated box, lid, rear mounting tongue and transverse spring |
| Use | Reusable |
Product · Samples · OEM enquiries
Ordering
Specify holder REF 12-5814 and quantity when requesting a quotation or samples. Each retail box contains one holder. Identify the compatible indicator and process in the same request so the correct configuration and documents can be supplied.
