MZS500 constant-heat medical pouch sealer with a maximum sealing length of 500 mm, 10 mm seal width, adjustable temperature from 60 to 220 °C and an integrated cutter. Suitable for compatible PP, PE, paper/PP and heat-sealable Tyvek® packaging.

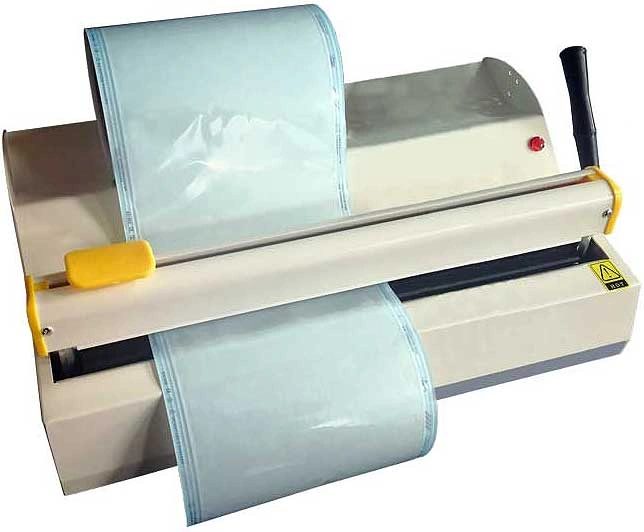

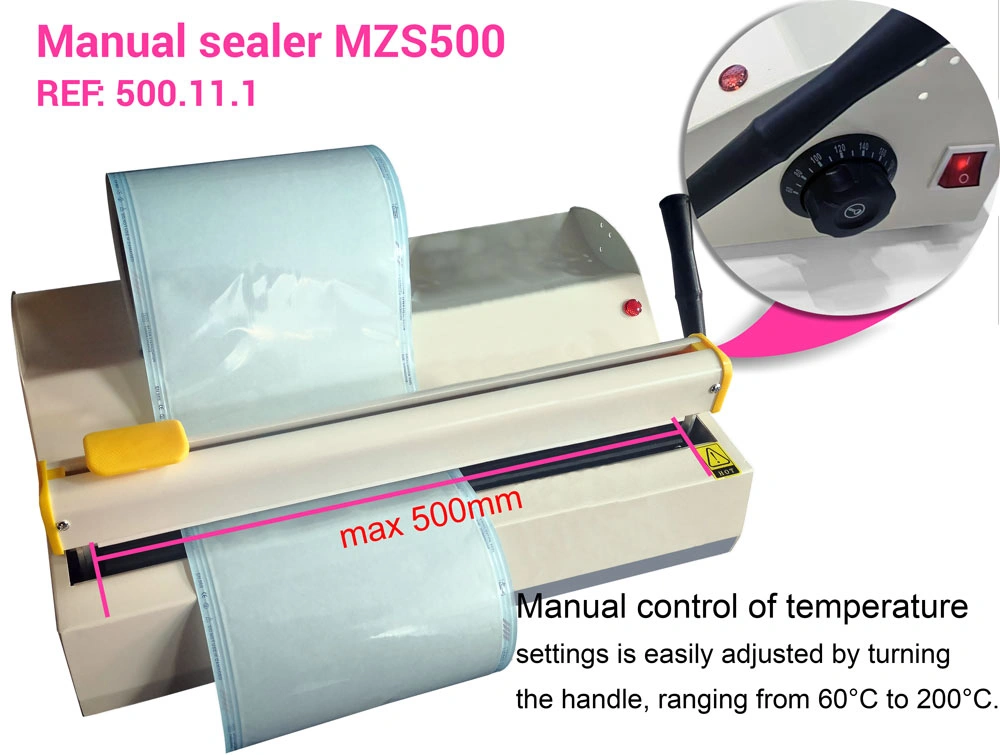

MZS500 Medical Heat Sealer for Pouches and Sterilization Reels
The Mediwish MZS500 is a benchtop constant-heat sealing machine designed to close compatible medical sterilization pouches and reel material before processing. It provides a maximum sealing length of 500 mm, a 10 mm-wide heat seal and an integrated cutting knife for preparing packaging from reels.
The adjustable temperature range of 60–220 °C allows the operator to select suitable sealing conditions for compatible polypropylene, polyethylene, paper/PP and heat-sealable Tyvek® packaging. The actual setting must always be based on the packaging manufacturer’s specified sealing window.
Key features of the MZS500 pouch sealer
- Maximum sealing length of 500 mm: suitable for a wide range of medical pouch and reel sizes.
- 10 mm seal width: produces a broad, clearly visible sealing line.
- Adjustable temperature from 60 to 220 °C: supports different compatible heat-sealable materials.
- Constant-heat operation: intended for repeatable routine packaging work.
- Integrated cutter: simplifies cutting sterilization reel material to the required length.
- Powder-coated steel body: provides a durable benchtop construction.
Technical specifications
| Model | MZS500 |
|---|---|
| Sealing method | Constant heat sealing |
| Maximum sealing length | 500 mm |
| Seal width | 10 mm |
| Temperature range | 60–220 °C |
| Cutting function | Integrated cutting knife |
| Compatible heat-sealing materials | PP, PE, paper/PP and heat-sealable Tyvek® packaging |
| Power | 800 W |
| Voltage and frequency | 110 V / 220 V, 50/60 Hz; confirm the required configuration when ordering |
| Body | White powder-coated steel |
| Product dimensions | 610 × 325 × 185 mm |
| Net weight | 11.5 kg |
| Carton dimensions | 660 × 400 × 250 mm |
| Gross weight | 12 kg |
| Country of origin | China |
| OEM supply | Available on request |
Medical and dental packaging applications
The MZS500 can be used in hospitals, sterile processing departments, dental clinics, laboratories and medical device packaging facilities. It is intended for preparing compatible heat-sealable pouches and reels before the packaging is processed using its approved sterilization method.
Recommended sealing workflow
- Confirm that the machine’s voltage configuration matches the local electrical supply.
- Select a compatible heat-sealable pouch or reel and check that it is clean, dry and undamaged.
- Set the temperature according to the packaging manufacturer’s validated sealing parameters.
- When using reel material, cut the required length with the integrated cutter.
- Position the open edge flat and free from folds, moisture or contamination, then operate the sealer according to its instructions for use.
- Inspect the finished seal for continuity, uniformity, wrinkles, channels, overheating or incomplete bonding.
Seal quality and process validation
The MZS500 is packaging equipment and does not sterilize instruments. The sealed package must be compatible with the intended sterilization process. The sealing temperature, operating technique and inspection criteria should be established using the actual packaging material and documented under the facility’s quality procedures.
Where applicable, ISO 11607-2 addresses the development and validation of forming, sealing and assembly processes for packaging used with terminally sterilized medical devices. Reference to this standard does not constitute a product certification claim.
OEM and distribution supply
Mediwish Co., Ltd offers OEM supply of the MZS500 for distributors, healthcare suppliers and medical packaging projects. When requesting a quotation, specify the required voltage, packaging materials, maximum pouch width, estimated order quantity and documentation requirements.
Frequently asked questions
Does the MZS500 sterilize medical instruments?
No. The machine only cuts and heat-seals compatible packaging. Sterilization is performed separately using a validated process appropriate for the selected packaging and medical device.
Which sealing temperature should be used?
The correct temperature depends on the packaging structure, sealing layer and manufacturer’s instructions. The machine’s 60–220 °C range is its operating capability, not one universal setting for every pouch.
Can the MZS500 seal Tyvek® packaging?
The listed compatible materials include Tyvek®. Only packaging structures supplied with a suitable heat-seal layer should be used, and the selected conditions must be verified for the actual material.
