MEDIWISH · Cleaning verification
A complete single-use cleaning challenge device

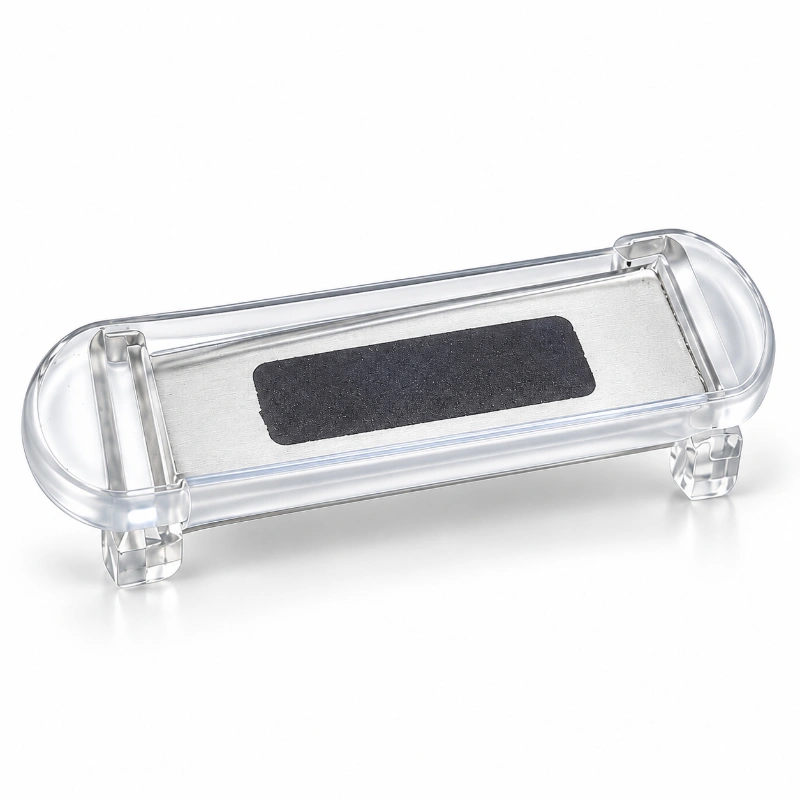

MEDIWISH CVWC-20 Wash Check is a complete cleaning challenge device comprising a metal plate with a dark test-soil area and an integral transparent plastic holder. The holder restricts washing-fluid access to the soil area to create the specified challenge. The entire assembly is single-use.
- REF
- CVWC-20Wash Check
- Pack
- 20 devicesIndividually packaged
- Holder
- IntegralTransparent plastic
- Use
- Single useEntire device
Keep the device assembled
The plate and holder form one test device and remain together for the cleaning test. This is not a replacement strip for a reusable box. Select and position the complete device according to its model-specific instructions and the established cleaning procedure. The holder geometry is part of the test configuration.
Supply and traceability

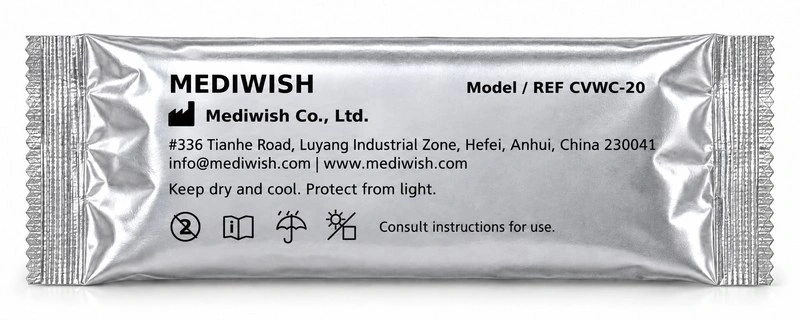

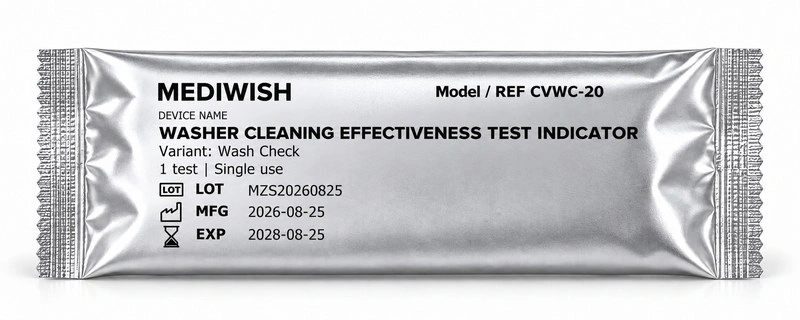

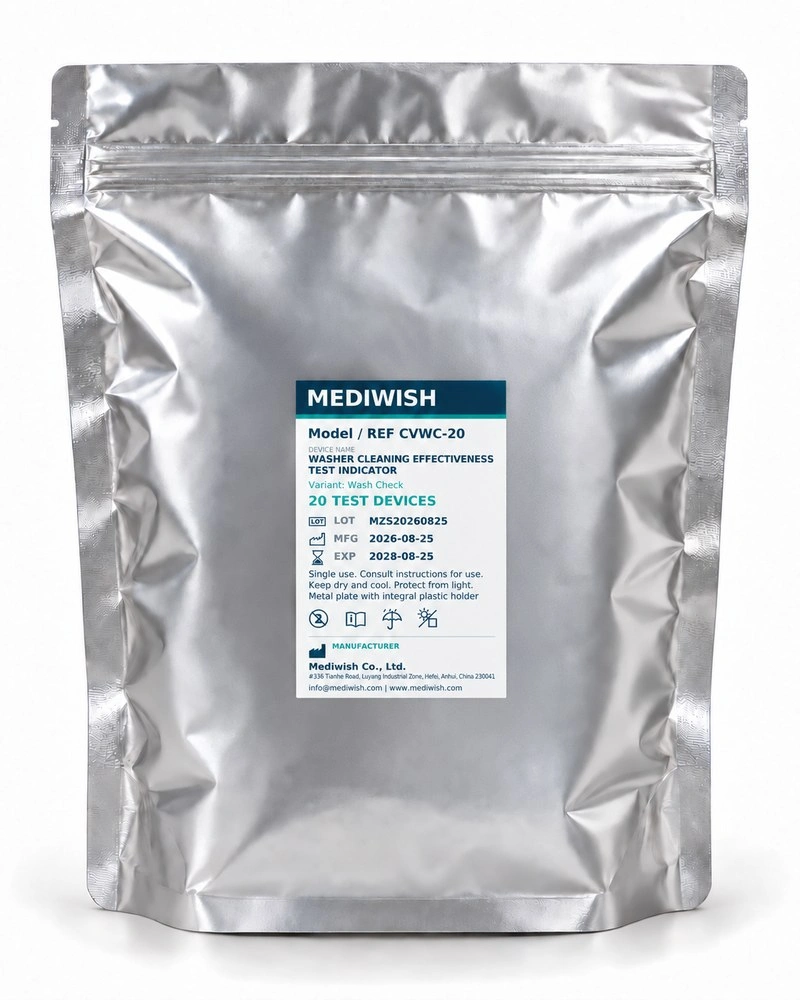

Each complete device is sealed individually in an aluminium pouch, with product and batch identification. The retail pack contains 20 individually packaged devices. Check REF, lot, expiry and packaging before use, and preserve the assembly without rubbing or wetting the test area. Record the device lot, placement and cycle with the observed result.
The individual pouch dimensions are packaging dimensions, not the external dimensions of the device. After use and result recording, dispose of the complete plate-and-holder assembly according to the applicable instructions and facility waste procedure.
Meaning of the cleaning challenge
The result is an observation of removal of the applied soil within this device under the selected cleaning conditions. It does not establish sterility, thermal disinfection or cleanliness of all instruments. The presence of a restricted-access holder does not establish a lumen test or equivalence to another manufacturer’s device.
Product specifications
| Characteristic | Specification |
|---|---|
| REF | CVWC-20 |
| Test carrier | Metal plate with dark test-soil area |
| Holder | Integral transparent plastic holder |
| Pack | 20 complete individually packaged devices |
| Use | Entire plate-and-holder assembly is single-use |
| Assembly net mass | 8.600 g |
| Individual packaging | Sealed aluminium pouch; pouch dimensions 100 × 40 × 12 mm |
| Storage | Keep dry and protect from light |
| Declared shelf life | 24 months; observe labelled expiry |
Product · Samples · OEM enquiries
Request devices or documentation
Specify CVWC-20, 20 complete devices per pack, when requesting a quotation or samples. Include the intended equipment, process and test procedure so the corresponding model-specific instructions and configuration can be reviewed.
