Dental manual sealer machine for sealing sterilization pouches in hospitals. Application
PURPOSE
DENTAL MANUAL TERMO SEALER:
The Dental manual sealer machine for sealing sterilization pouches is designed for reliable sealing sealing and cutting of packaging materials (paper-film rolls, bags, paper bags with a hot-melt layer applied or packages of polymer films) under conditions of sterilization compartments in hospitals and dental clinics. The device is simple and reliable to use.
Attention: The termosealer device is intended for professional use only!
Caution: The design of the hand sealer machine contains cutting parts!
Caution to burns! The structure of the medical sealer apparatus contains parts heated by operation with the apparatus up to 300 ° C. To work with the device is allowed to persons familiar with instruction and safety rules when working with electrical appliances!
MZS300 advantages
- compact table top sealer machine, easy to use
- Perfect seals without the risk of burns due to overheating
- 12 mm flat seal in just 3 seconds
- Can accomodate a larger selection of rolls width
- Easy temperature adjustment
- Integrated reel tray
- Applications:medical
- Technology:manual, impulse
MZS300 specifications
- Seal width: 12 mm flat
- Seal length: 300 mm or 400 mm
- Single heated on top, adjustable temperature
- Manual operated knife
- colour led indicator
- Fixed film reel tray
- Standards: EN-ISO 12100-1/2, EN-IEC 60204-1, EB-ISO 13732-1, EN-ISO 11607-1, DIN 58953-7
- IP 20, class 1
- Voltage: 220V 50Hz
Application areas
- Dental practice
- Medical practice
- Surgeries
- Laboratory
- Veterinary
 |
 |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in electric parts and operation parts (Amtel corporation, Japan heating ceramic element inside!. )
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization
The sealer is made of stainless steel (models 2 and 4) or powder coated in white or light gray (models 1 and 3) for corrosion protection and allows easy cleaning and use of disinfectants. On the surface of the body of the device there is a special tray for the installation of rolls of packaging material in it, which does not require additional costs for the purchase and installation of holders for rolls of third-party manufacturers. The design of the device uses a microprocessor temperature controller from Amtel, Japan with an extended service life. The desired temperature is set manually by the operator. The temperature is maintained automatically. In the design of the apparatus, a cutter with a system of double knives is used, which can be easily and quickly replaced in case of cutting or blunting of the cutting edge. As replaceable knives, disposable surgical blades used in medical practice (of any manufacturer) can be used.
DESCRIPTION OF THE MEDICAL SEALER:

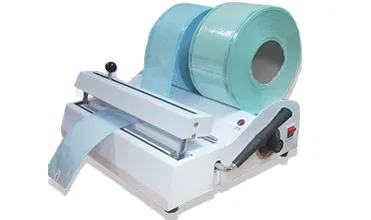

Appearance and diagram of the dental sealer machine for sealing pouches with the instrument before sterilization:

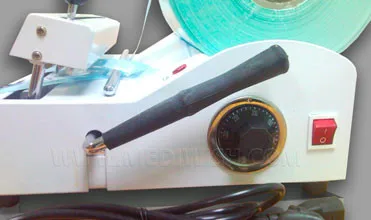

Detailed Images. Figure 1|
1
|
Body of impulse hand medical sealer machine
|
|
2
|
Heating element
|
|
3
|
Tray for sterilization rolls
|
|
4
|
Cutter
|
|
5
|
Heating led indicator
|
|
6
|
Clamping beam handling
|
|
7
|
Power switch
|
|
8
|
Temperature regulator (500-3000C)
|
|
9
|
Guide beam
|
|
10
|
Teflone and silicone strip on clamping beam
|
Machine Parts
Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Main Features
Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Machine Parts
Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Main Features
Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

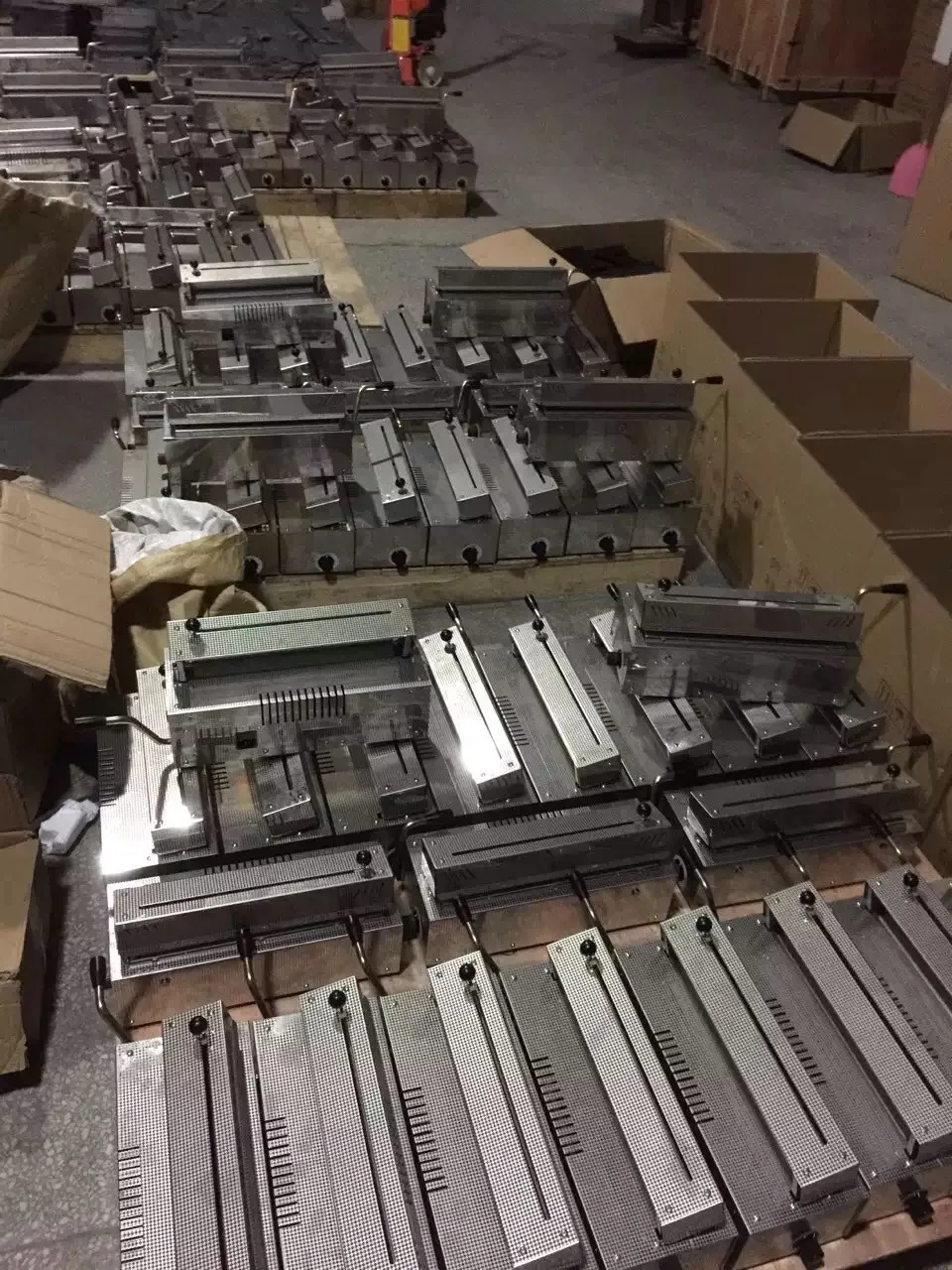

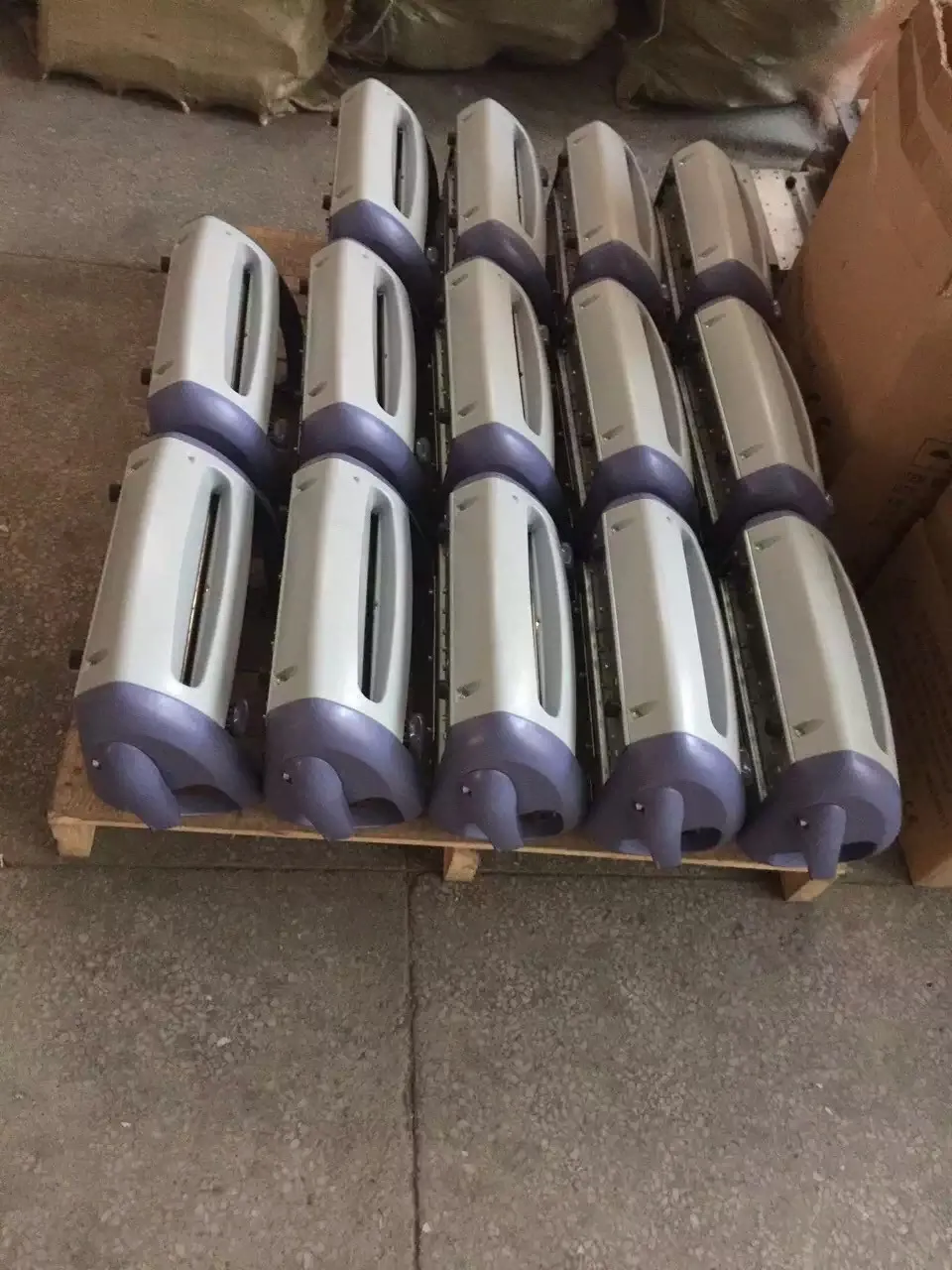

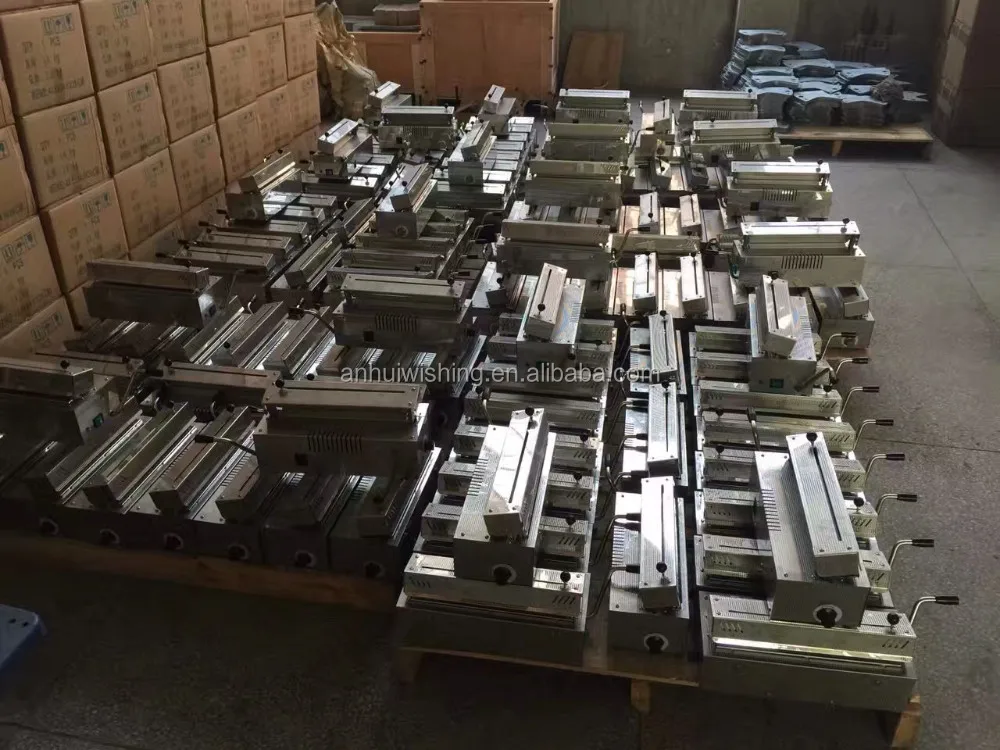

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
Weight
|
1.2 T
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
User manual. Medical sealer machine
Operation of the device:
1. Connecting to a power source and adjusting the temperature
Connect the power cord to the socket of the instrument sealing device located on the back of the appliance and insert the plug into the socket. Press the on button, set the desired temperature with the thermostat, wait 2 minutes for heating. When the heat indicator turns off, the unit is ready for operation (DO NOT REMOVE THE HEATING ELEMENT TO AVOID BURN).

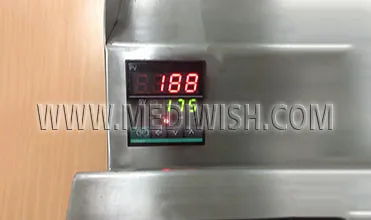

The sealer is equipped with an accurate temperature control system (from 50 to 300 ° C) which allows setting the temperature with the help of a special regulator shown in Figure 1. Temperature adjustment
* When using paper-film rolls, it is done by experiment, depending on the type and thickness of the materials to be welded
* The temperature of welding of paper with a film containing in its composition: Polypropylene 160-1900C, Polyamide 180-2400C, Tyvek 50-800C
I. Summery：
MZS300 (400) that we produced is a manual one which is for seal bags. This product using some advanced technology
such as dual heaters ：temperature adjustable ：ultra high temperature automatic protection：low temperature alarm
：over-current protection with the advantage of fast heating rate：stable performance：aesthetic appearance：using
security：easy to operate：low repair rate.This mode is very popular in the hospital and clinic.
II. Technology parameters：
Pressure：AC220±10： 50Hz
Power：500W
III. Handle Instructions：
： Open the box and check the machine.Be sure that the machine is intact the screw tightening .Repeated slide
the cutter and wrench making sure there is no internal damage.
： Put the paper-plastic bags on the bracket and then import the paper shroud.
： Turn on the power,adjust the knob to a fittable temperature(we recommend 170：：users can adjust the temperature according to the local climate).The indicate light lit,when the light is off the machine can start work.
： Pull out the bags：pull the wrench on the right side for 2-3s and then slide the cutter .Push the wrench and then
take the bags out.
IV. Shape and weight：
： Size：450×390×240(mm)
： Weight：9kg
V. Storage environment：
： Temperature：-10：~55：
： Humidity：≤90%：R.H：
： Atmospheric Pressure：50kpa~110kpa
Painted or stainless steel, seal size 300 mm or 400 mm
